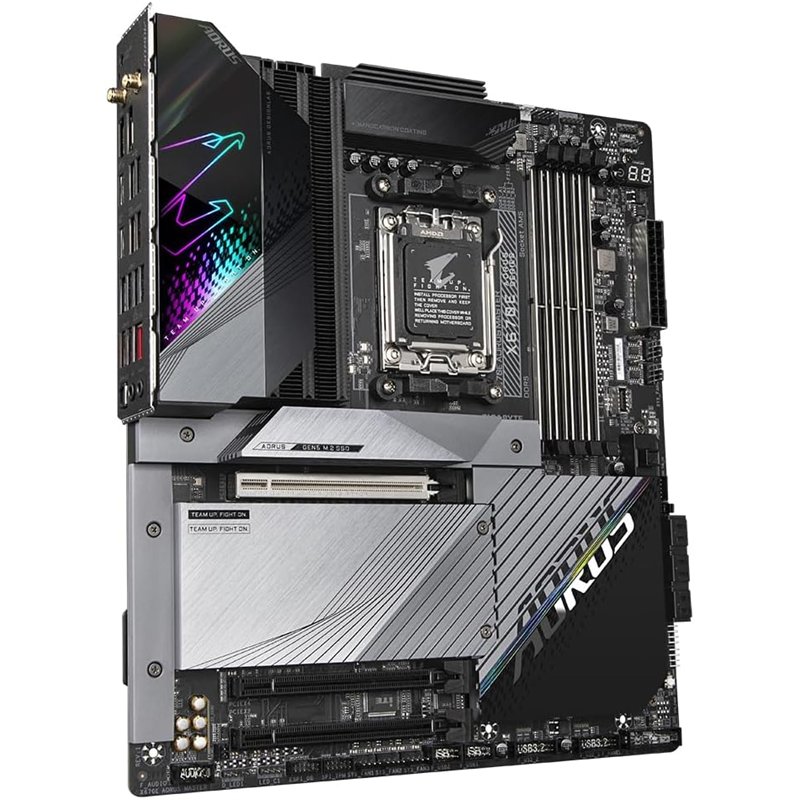

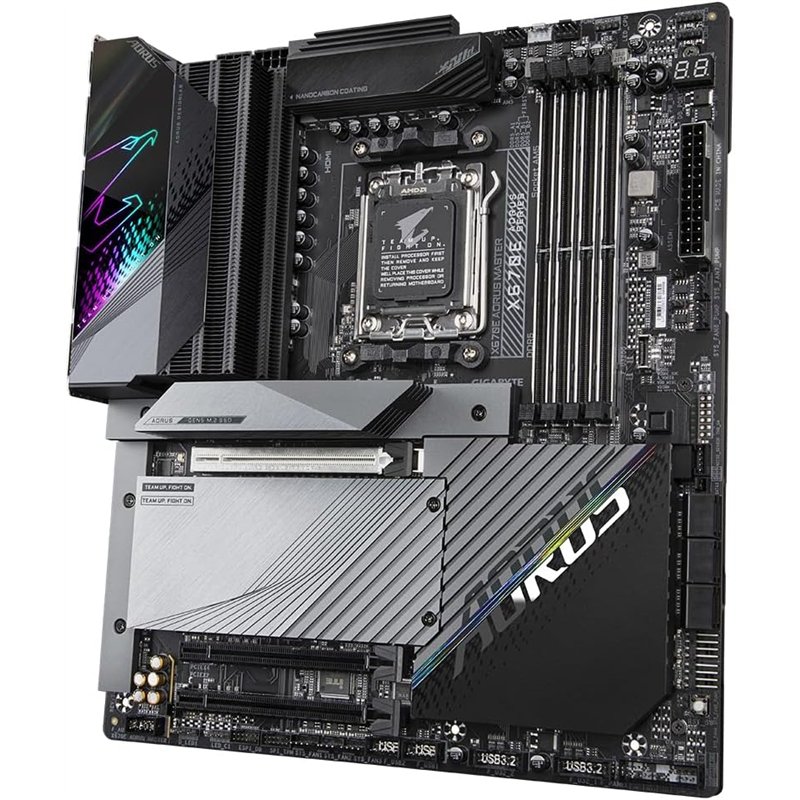

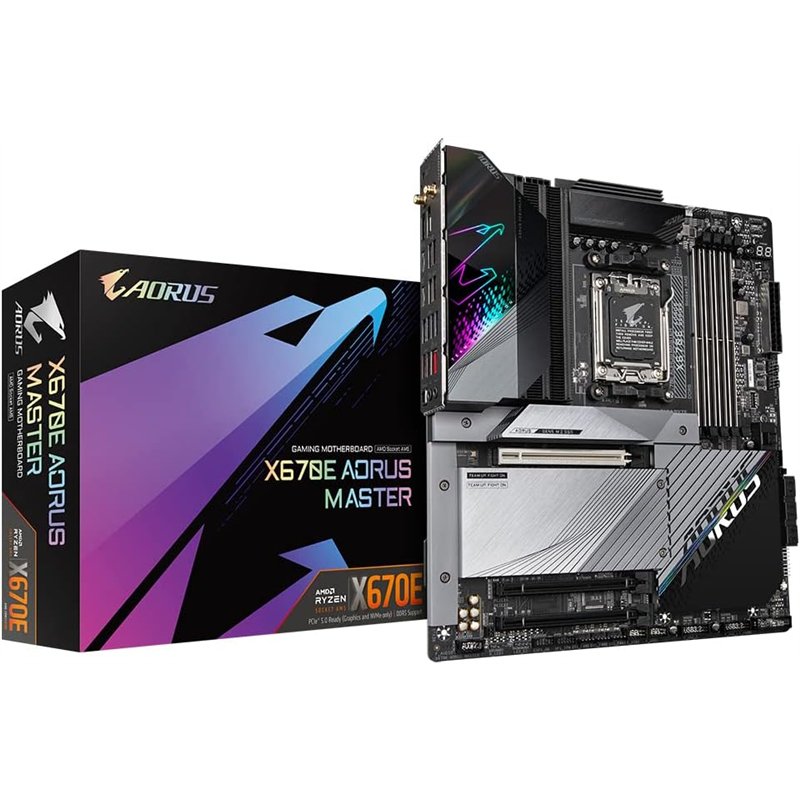

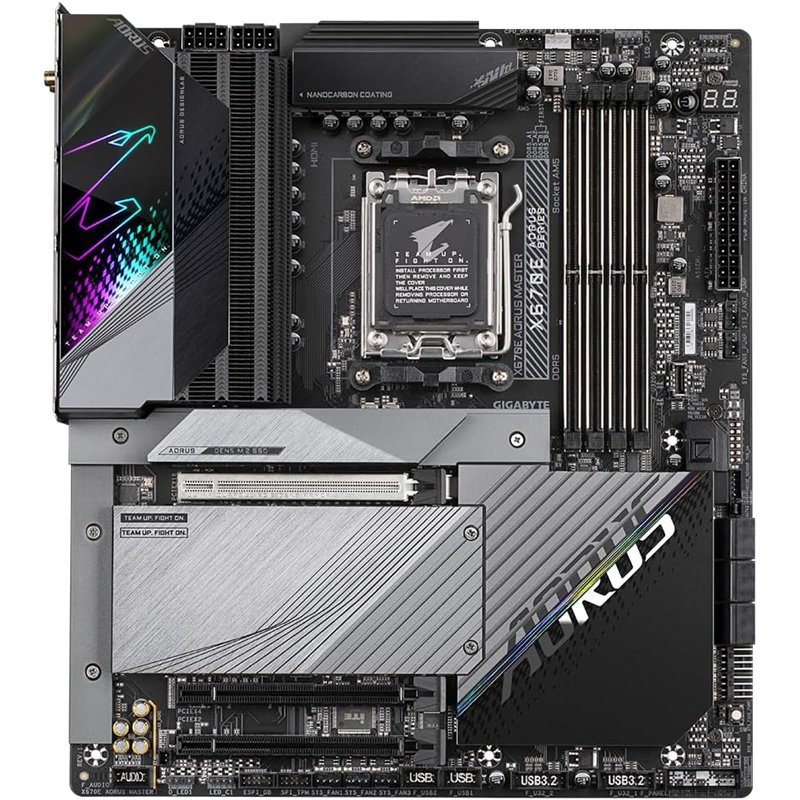

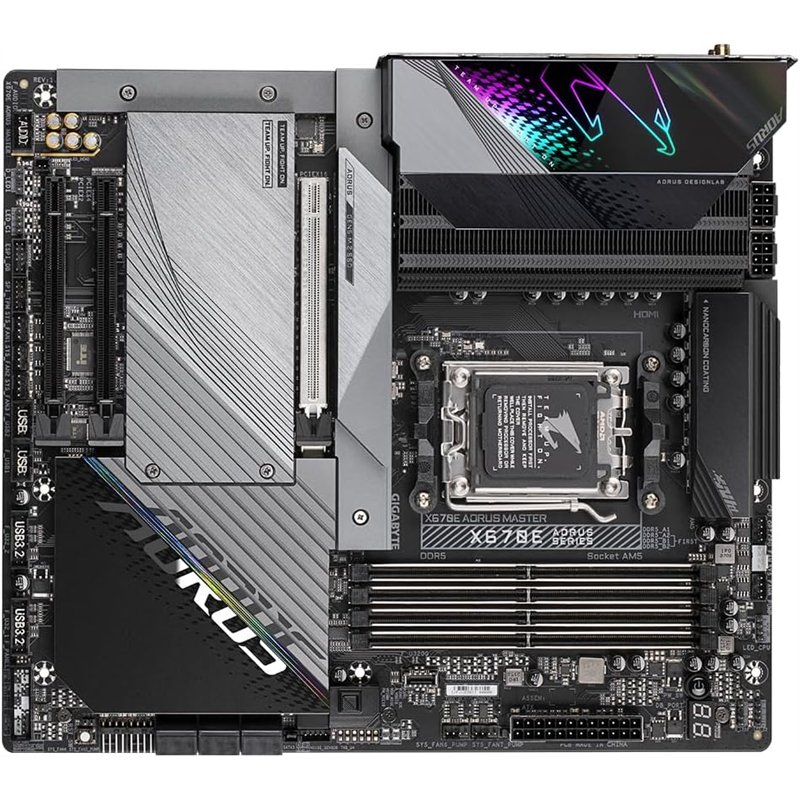

GIGABYTE X670E AORUS MASTER: (AM5) 4DDR5 ATX

Características:

• CPU
  • AMD Socket AM5, support for : AMD Ryzen™ 7000 Series Processors
  • (Please refer "CPU Support List" for more information.)
• Chipset
  • AMD X670
• Memory
  • Support for DDR5 5200/4800/4400 MHz memory modules
  • 4 x DDR5 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
  • Dual channel memory architecture
  • Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  • Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory module
  • (Please refer "Memory Support List" for more information.)
  • Onboard Graphics
  • Integrated Graphics Processor:
  • 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz
  • * Support for DisplayPort 1.4 version and HDR.
  • 1 x USB Type-C® port, supporting USB 3.2 Gen 2 and DisplayPort video outputs and a maximum resolution of 3840x2160@144 Hz
  • * Support for DisplayPort 1.4 version and HDR.
  • 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
  • * Support for HDMI 2.0 version and HDCP 2.3.
  • (Graphics specifications may vary depending on CPU support.)
• Audio
  • Realtek® ALC1220-VB CODEC
  • * The back panel line out jack supports DSD audio.
  • Support for DTS:X® Ultra
  • High Definition Audio
  • 2/4/5.1/7.1-channel output
  • * You can change the functionality of an audio jack using the audio software. To configure
  • 7.1-channel audio, access the audio software for audio settings.
  • Support for S/PDIF Out
• LAN
  • Intel® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
• Wireless Communication module
  • Intel® Wi-Fi 6E AX210
  • WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
  • BLUETOOTH 5.3
  • Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
  • (Actual data rate may vary depending on environment and equipment.)
• Expansion Slots
  • CPU:
  • 1 x PCI Express x16 slot, supporting PCIe 5.0* and running at x16 (PCIEX16)
  • * Actual support may vary by CPU.
  • * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
  • Chipset:
  • 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
  • 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x2 (PCIEX2)
  • * The PCIEX2 slot shares bandwidth with the SATA3 4/5 connectors. The SATA3 4/5 connectors will become unavailable when a device is installed in the PCIEX2 slot.
  • Support for AMD CrossFire™ technology (PCIEX16 and PCIEX4)
  • Storage Interface
  • CPU:
  • 1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 5.0* x4/x2 SSD support) (M2A_CPU)
  • * Actual support may vary by CPU.
  • 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 5.0* x4/x2 SSD support) (M2B_CPU)
  • * Actual support may vary by CPU.
  • Chipset:
  • 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2C_SB, M2D_SB)
  • 6 x SATA 6Gb/s connectors
  • RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
  • RAID 0, RAID 1, and RAID 10 support for SATA storage devices
  • USB
  • CPU:
  • 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support
  • 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
  • CPU + USB 2.0 Hub:
  • 2 x USB 2.0/1.1 ports on the back panel
  • Chipset:
  • 2 x USB Type-C® ports, with USB 3.2 Gen 2x2 support (1 port on the back panel, 1 port available through the internal USB header)
  • 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
  • 4 x USB 3.2 Gen 1 ports available through the internal USB headers
  • 4 x USB 2.0/1.1 ports available through the internal USB headers
  • Chipset+USB 3.2 Gen 1 Hub:
  • 4 x USB 3.2 Gen 1 ports on the back panel
• Internal I/O Connectors
  • 1 x 24-pin ATX main power connector
  • 2 x 8-pin ATX 12V power connectors
  • 1 x CPU fan header
  • 1 x water cooling CPU fan header
  • 4 x system fan headers
  • 4 x system fan/water cooling pump headers
  • 2 x addressable LED strip headers
  • 2 x RGB LED strip headers
  • 1 x CPU cooler LED strip/RGB LED strip header
  • 4 x M.2 Socket 3 connectors
  • 6 x SATA 6Gb/s connectors
  • 1 x front panel header
  • 1 x front panel audio header
  • 1 x USB Type-C® header, with USB 3.2 Gen 2x2 support
  • 2 x USB 3.2 Gen 1 headers
  • 2 x USB 2.0/1.1 headers
  • 1 x noise detection header
  • 1 x THB_U4 add-in card connector
  • 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
  • 1 x power button
  • 1 x reset button
  • 1 x reset jumper
  • 1 x Clear CMOS jumper
  • 2 x temperature sensor headers
  • Voltage Measurement Points

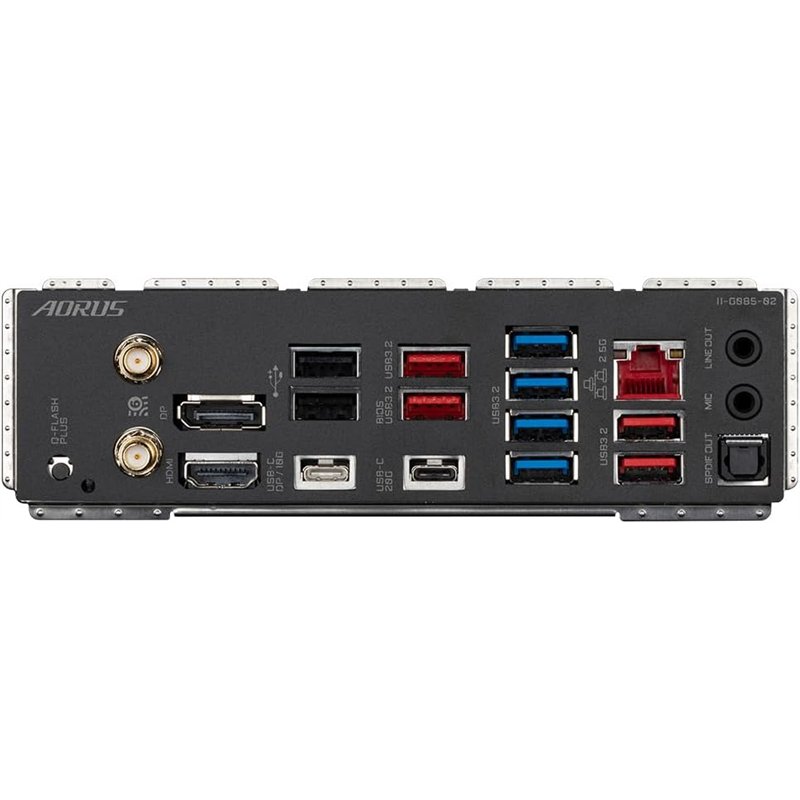

  • Back Panel Connectors
  • 1 x Q-Flash Plus button
  • 2 x SMA antenna connectors (2T2R)
  • 1 x DisplayPort
  • 1 x HDMI 2.0 port
  • 1 x USB Type-C® port (DisplayPort), with USB 3.2 Gen 2 support
  • 1 x USB Type-C® port, with USB 3.2 Gen 2x2 support
  • 4 x USB 3.2 Gen 2 Type-A ports (red)
  • 4 x USB 3.2 Gen 1 ports
  • 2 x USB 2.0/1.1 ports
  • 1 x RJ-45 port
  • 1 x optical S/PDIF Out connector
  • 2 x audio jacks
• I/O Controller
  • iTE® I/O Controller Chip
  • H/W Monitoring
  • Voltage detection
  • Temperature detection
  • Fan speed detection
  • Water cooling flow rate detection
  • Fan fail warning
  • Fan speed control
  • * Whether the fan (pump) speed control function is supported will depend on the fan(pump) you install.
  • Noise detection
• BIOS
  • 1 x 256 Mbit flash
  • Use of licensed AMI UEFI BIOS
  • PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
• Unique Features
  • Support for GIGABYTE Control Center (GCC)
  • * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
  • Support for Q-Flash
  • Support for Q-Flash Plus
  • Support for Smart Backup
  • LAN bandwidth management software
• Operating System
  • Support for Windows 11 64-bit
  • Support for Windows 10 64-bit
• Form Factor
  • E-ATX Form Factor; 30.5cm x 26.9cm
