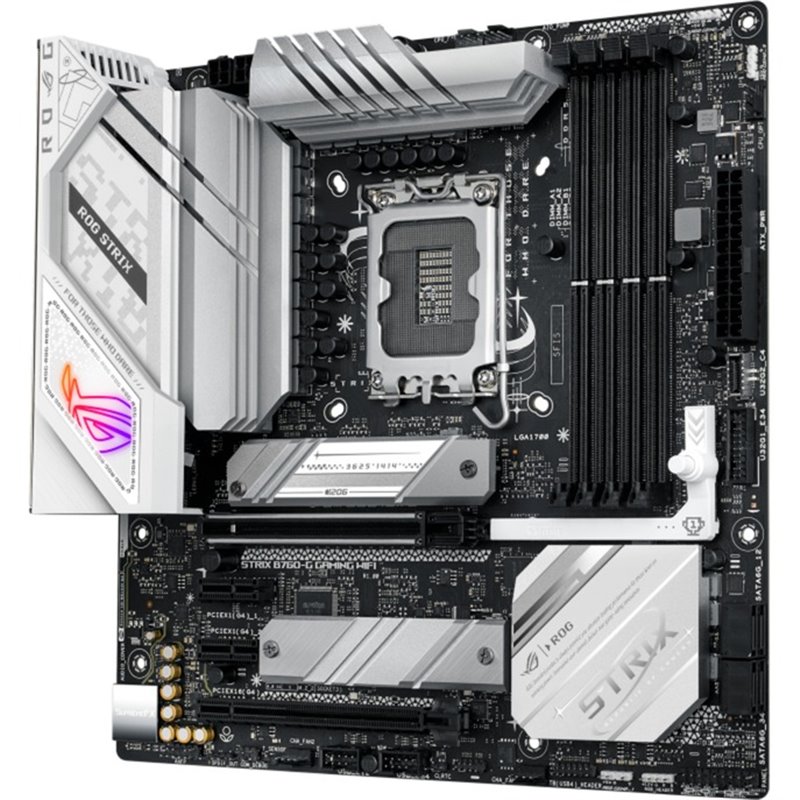

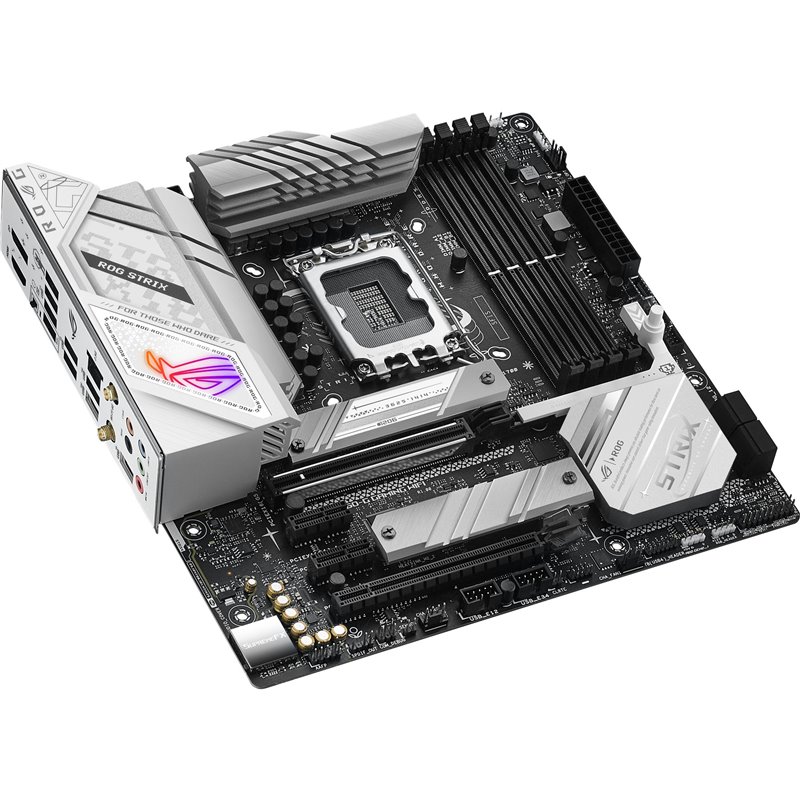

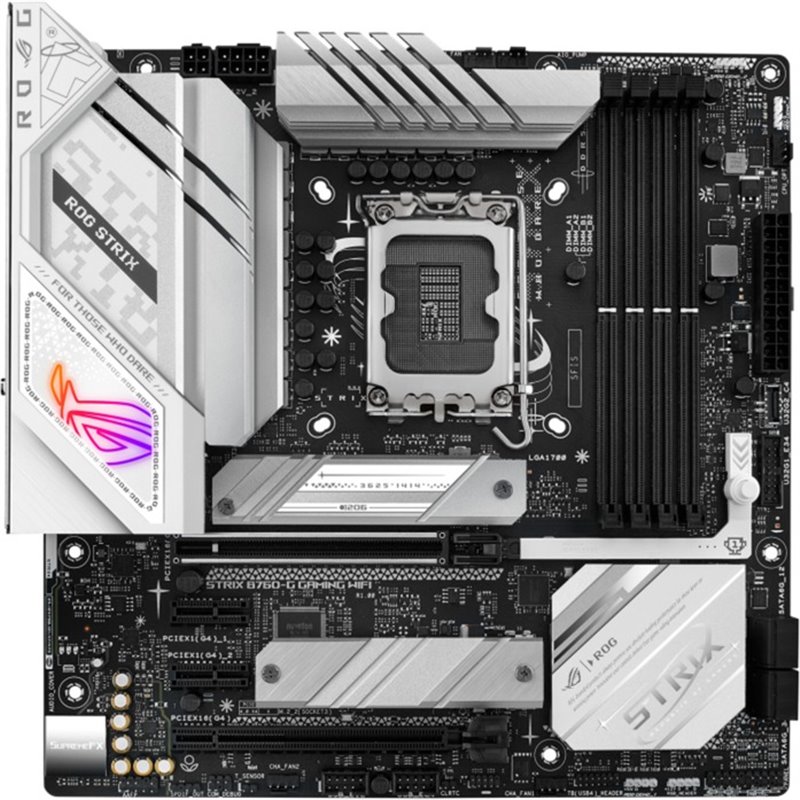

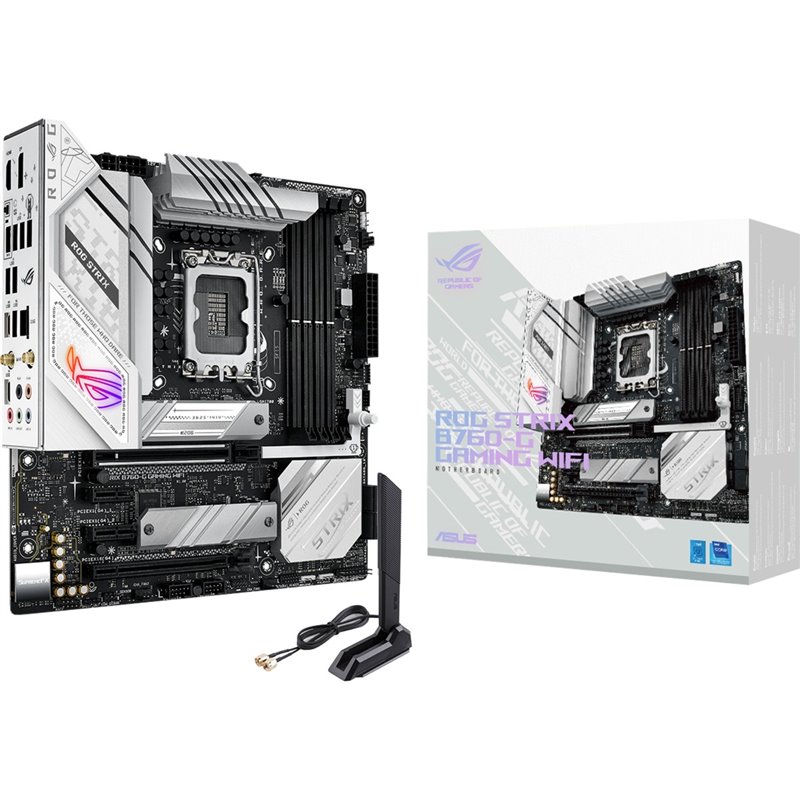

ASUS ROG STRIX B760-G GAMING WIFI: (1700) 4DDR5 mATX

Características:

•  CPU
  • Intel® Socket LGA1700 for 13th Gen Intel® Core™ Processors & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors*
  • Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
  • * Refer to www.asus.com for CPU support list.
  • ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
• Chipset
  • Intel® B760 Chipset
• Memory
  • 4 x DIMM slots, Max. 128GB, DDR5
  • 7800+(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800MHz Non-ECC, Un-buffered Memory*
  • Dual Channel Memory Architecture
  • Supports Intel® Extreme Memory Profile (XMP)
  • OptiMem II
  • * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/
  • * Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function
  • * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
• Graphics
  • 1 x DisplayPort**
  • 1 x HDMI®***
  • * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
  • ** Support 4K@60Hz as specified in DisplayPort 1.4
  • *** Support 4K@60Hz as specified in HDMI 2.1.
• Expansion Slots
  • Intel® 13th & 12th Gen Processors
  • 1 x PCIe 5.0 x16 slot
  • Intel® B760 Chipset
  • 1 x PCIe 3.0 x16 slot (supports x4 mode)
  • 2x PCIe 4.0 x1 slots
  • - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.
• Storage
  • Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*
  • Intel® 13th & 12th Gen Processors
  • M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
  • Intel® B760 Chipset**
  • M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
  • 4 x SATA 6Gb/s ports
  • * Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10.
• Ethernet
  • 1 x Intel® 2.5Gb Ethernet
  • ASUS LANGuard
• Wireless & Bluetooth
  • Wi-Fi 6E
  • 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
  • Supports 2.4/5/6GHz frequency band*
  • Bluetooth® v5.3
  • * WiFi 6E 6GHz regulatory may vary between countries.
• USB
  • Rear USB (Total 9 ports)
  • 1 x USB 3.2 Gen 2x2 (20G) port (1 x USB Type-C®)
  • 1 x USB 3.2 Gen 2 (10G) port (1 x Type-A)
  • 3x USB 3.2 Gen 1 (5G) ports (2 x Type-A, 1 x USB Type-C®)
  • 4 x USB 2.0 ports (4 x Type-A)
  • Front USB (Total 7 ports)
  • 1 x USB 3.2 Gen 2 (10G) connector (supports USB Type-C®)
  • 1 x USB 3.2 Gen 1 (5G) header supports additional 2 USB 3.2 Gen 1 ports
  • 2 x USB 2.0 header supports additional 4 USB 2.0 ports
• Audio
  • ROG SupremeFX 7.1-Channel High Definition Audio CODEC S1220A
  • - Impedance sense for front and rear headphone outputs
  • - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
  • - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
  • - Supports up to 32-Bit/192 kHz playback*
  • Audio Features
  • - SupremeFX Shielding Technology
  • - Savitech SV3H712 AMP
  • - Premium audio capacitors
  • - Audio cover
  • * Due to limitations in HAD bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.

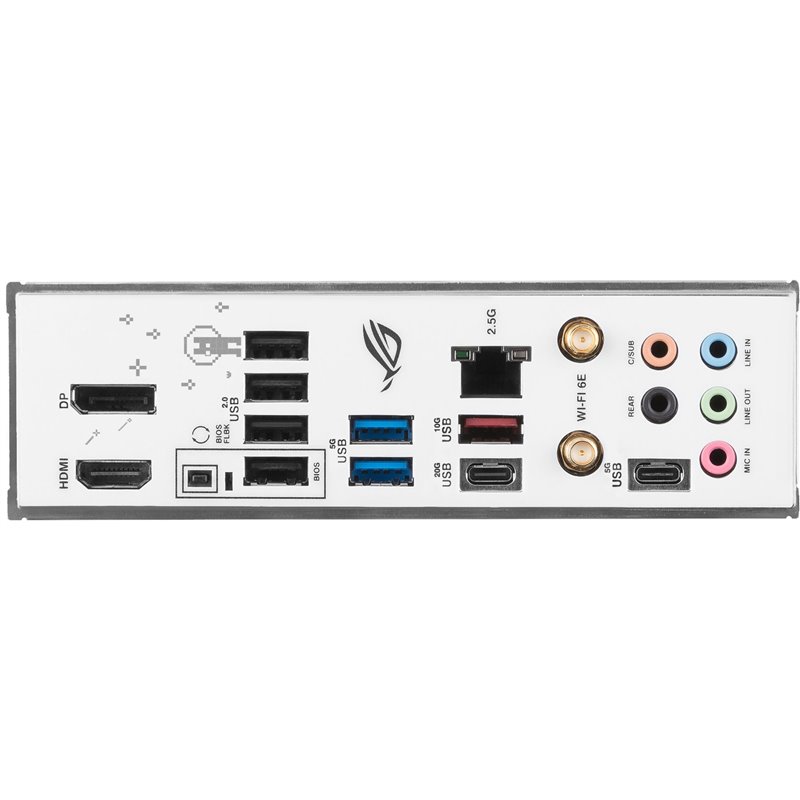

• Back Panel I/O Ports
  • 1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C®)
  • 1 x USB 3.2 Gen 2 port(s) (1 x Type-A)
  • 3x USB 3.2 Gen 1 port(s) (2 x Type-A, 1 x USB Type-C®)
  • 4 x USB 2.0 port(s) (4 x Type-A)
  • 1 x HDMI® port
  • 1 x DisplayPort
  • 1 x Wi-Fi Module
  • 1 x Intel® 2.5Gb Ethernet
  • 5 x Audio jacks
  • 1 x BIOS FlashBack™  button
• Internal I/O Connectors
  • Fan and Cooling related
  • 1 x 4-pin CPU Fan header
  • 1 x 4-pin CPU OPT Fan header
  • 1 x 4-pin AIO Pump header
  • 2 x 4-pin Chassis Fan header(s)
  • Power related
  • 1 x 24-pin Main Power connector
  • 1 x 8-pin +12V Power connector
  • 1 x 4-pin +12V Power connector
  • Storage related
  • 2 x M.2 slots (Key M)
  • 4 x SATA 6Gb/s ports
  • USB
  • 1 x USB 3.2 Gen 2 connector (supports USB Type-C®)
  • 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
  • 2 x USB 2.0 headers support additional 4 USB 2.0 ports
  • Miscellaneous
  • 3 x Addressable Gen 2 header(s)
  • 1 x AURA RGB header(s)
  • 1 x Clear CMOS header
  • 1 x Front Panel Audio header (AAFP)
  • 1 x S/PDIF Out header
  • 1 x 20-3 pin System Panel header with Chassis intrude function
  • 1 x Thermal Sensor header
  • 1 x Thunderbolt™ (USB4®) header
• Special Features
  • Extreme Engine Digi+
  • - 5K Black Metallic Capacitors
  • ASUS Q-Design
  • - M.2 Q-Latch
  • - PCIe Slot Q-Release
  • - Q-DIMM
  • - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
  • - Q-Slot
  • ASUS Thermal Solution
  • - M.2 heatsink
  • ASUS EZ DIY
  • - BIOS FlashBack™ button
  • - BIOS FlashBack™ LED
  •  -CPU Socket lever protector
  • - ProCool
  • - Pre-mounted I/O shield
  • - SafeSlot
  • - SafeDIMM
  • AURA Sync
  • - Aura RGB header
  • - Addressable Gen 2 header
• Software Features
  • ROG Exclusive Software
  • - GameFirst VI
  • - ROG CPU-Z
  • - Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion
  • - Sonic Radar III
  • - DTS® Sound Unbound
• ASUS Exclusive Software
  • Armoury Crate
  • - AIDA64 Extreme (60 days free trial)
  • - AURA Creator
  • - AURA Sync
  • - Fan Xpert 4
  • - Two-Way AI Noise Cancelation
  • - Power Saving
  • AI Suite 3
  • - Performance And Power Saving Utility
  • - DIGI+ VRM
  • - PC Cleaner
  • MyAsus
  • WinRAR
  • UEFI BIOS
  • ASUS EZ DIY
  • - ASUS CrashFree BIOS 3
  • - ASUS EZ Flash 3
  • - ASUS UEFI BIOS EZ Mode
  • MemTest86
• BIOS
  • 256 Mb Flash ROM, UEFI AMI BIOS
• Manageability
  • WOL by PME

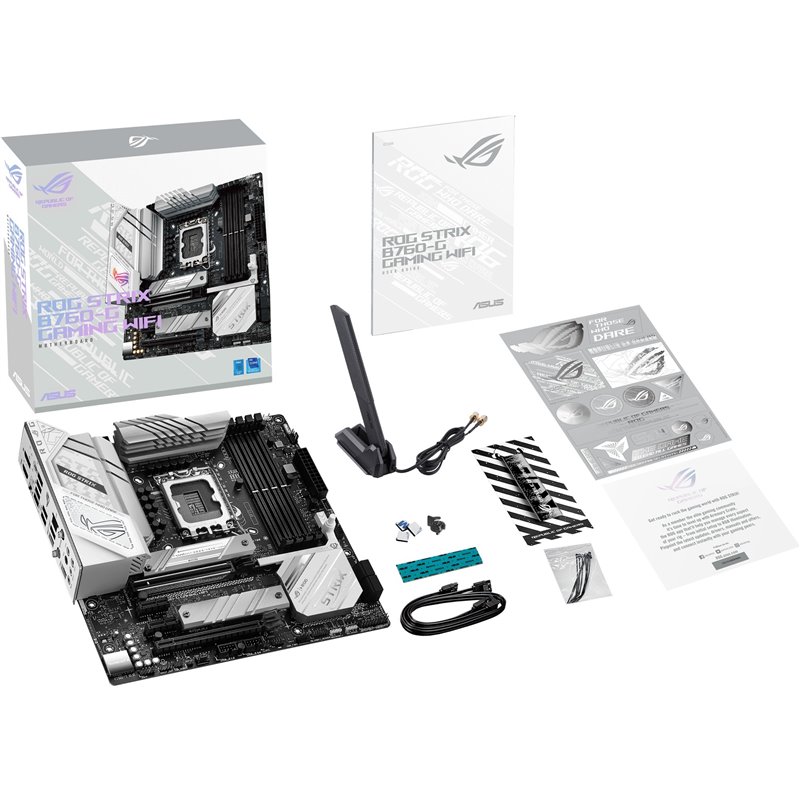

• Accessories
  • Cables
  • 2 x SATA 6Gb/s cables
  • Additional Cooling Kit
  • 1 x Thermal pad for M.2
• Miscellaneous
  • 1 x ASUS Wi-Fi moving antennas
  • 1 x Cable ties pack
  • 1 x Rubber Package for M.2
  • 1 x Q-Latch package for M.2
  • 1 x ROG key chain
  • 1 x ROG Strix stickers
  • 1 x ROG Strix thank you card
• Documentation
  • 1 x User manual
• Operating System
  • Windows® 11, Windows® 10 64-bit
• Form Factor
  • micro-ATX Form Factor
  •  9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)
